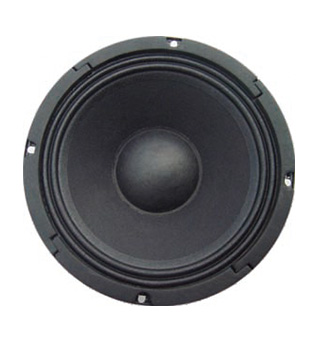

Model：G805

Nominal Basket Diameter：8''

Impedance：8 Ω

Power Rating：200WRMS

Resonance：85Hz

Sensitivity：94dB/WM

Magnet Weight：28oz

Gap Height：8mm

Voice Coil Diameter：50MM

Usable Frequency Range：Fo-4.5kHz

Thiele-Small parameters

Resonant Frequency(Fs)：85Hz

Impedance(Re)：I0.5 ohm

Electromagnetic Q(Qes)：0.68

Mechanical Q(Qms)：13.6

Total Q(Qts)：0.65

Compliance Equivalent Volume((Vas)：I4.5 liters

Mechanical Compliance of Suspension(Cms)：0.21 mm/N

BL Product(BL)：II.3T-M

Diaphragm Mass inc. Airload(Mms)：I6 grams

Voice Coil Overhang(Xmax)：I mm

Surface Area of Cone(Sd)：220cm²
